| Parameter | Specification |
|---|---|

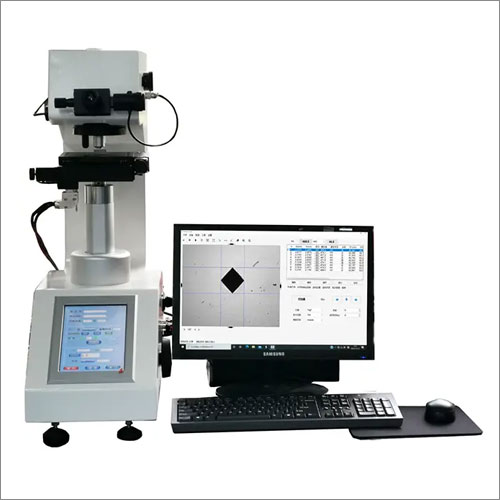

| Model | pixHard-Auto |
| Test Force | 10 gf (0.098 N), 25 gf (0.245 N), 50 gf (0.49 N), 100 gf (0.98 N), 200 gf (1.96 N), 300 gf (2.94 N), 500 gf (4.9 N), 1 kgf (9.8 N), 2 kgf (19.6 N) |
| Meet Standard | GB/T 4340.2, ASTM E92 |
| Measurement Resolution | 0.01 μm |
| Data Display Output | 8-inch Touch Screen Display with reading output, stores up to 20 test results, USB drive support, optional built-in printer and RS-232 interface. |
| Conversion Scale | Rockwell, Brinell |
| Hardness Test Range | 8 ~ 2900 HV |
| Test Force Application Method | Automatic Loading, Dwell and Unloading |
| Test Microscope Magnification | 400X (Testing), 100X (Testing & Observation) |
| Test Force Retention Time | 1 – 99 Seconds |
| Maximum Allowable Specimen Height | 160 mm |
| Distance from Head to Wall | 160 mm |
| Dimensions (L × W × H) | 540 × 260 × 650 mm |
| Weight | Approximately 50 kg |
| Power Supply | AC 220V ±5%, 50–60 Hz |
